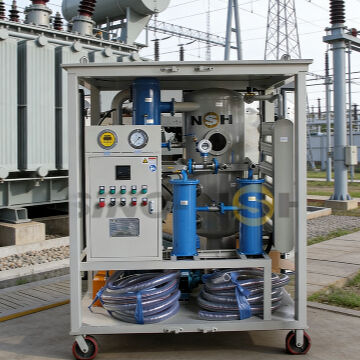

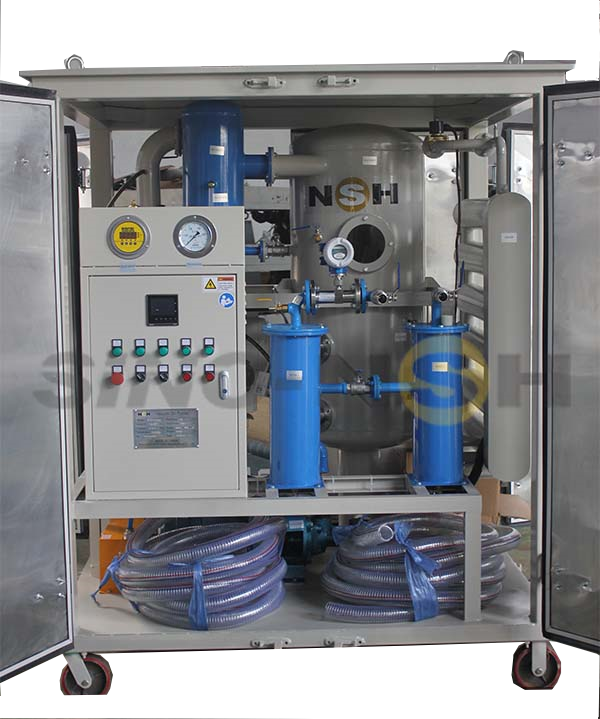

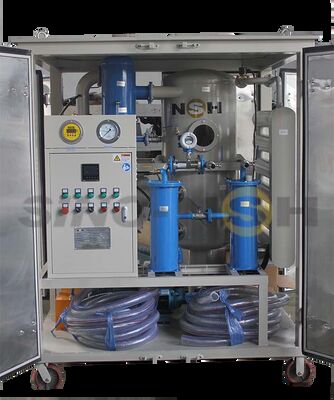

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover

Informations de base

Lieu d'origine:	Chine
Nom de marque:	Sino-NSH
Certification:	CE, ISO, CCC, SGS, CNAS, CQC
Numéro de modèle:	VFD

Quantité de commande min:	1 ensemble
Prix:	USD 5000-20000 dollar
Détails d'emballage:	Casse en bois solide, adaptée au transport maritime de marchandises sur de longues distances et aux
Délai de livraison:	15-25 jours ouvrables pour l'OEM
Conditions de paiement:	LC, T/T, Western Union, MoneyGram
Capacité d'approvisionnement:	50 ensembles par mois

meilleur prix Contactez

Puissance (w):	103 KILOWATTS	Poids:	900 kg
Service après-vente fourni::	Ingénieurs disponibles pour entretenir les machines à l’étranger	Tension:	380v/50hz ou selon l'option de l'utilisateur
Garantie:	12 mois	couleur:	Bleu, Gris, Vert ou Personnalisable
Température de travail:	-10 à 80 °C	Matériel:	Acier
Méthode de chauffage:	Électrique	Condition:	Nouveau
Dimension(LLH):	190014001800	Débit (L/H):	6000
Pression de travail:	≤ 0,3 MPa	Fonction:	Cette unité peut améliorer les propriétés des huiles isolantes dans les transformateurs de puissance
Matière première:	Acier au carbone	Taper:	Filtration d'huile de transformateur
Capacité:	6000 L/H	Nom:	Machine de déshydratation d'huile de machine d'épurateur d'huile de transformateur de 60
Souligner:	Purificateur d'huile de transformateur 6000 L/H, équipement de purification d'huile d'is

Product Overview

Sino-NSH 6000 liters/ hour Double-Stage Transformer Oil Purification Machine is a highly efficient and reliable oil cleaning equipment, specifically designed to meet the stringent requirements of transformer oil purification. This advanced machine is equipped with a robust steel cover, ensuring durability and safety during operation.

Application

Sino-NSH-VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

Processed Oil Specification:

Water Content:≤5ppm

Gas Content:≤0.1%

Filtration Fineness:≤5(or 1-5 as needed)

Operating conditions

The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
Working PrincipleThe insulating oil is conveyed into the plant by means of pressure difference. Oil will firstly flow through a coarse filter, which can filter out large particles and mechanical impurities from insulating oil.
Oil is heated uniformly by electric heater with less specific heat transfer of1.7w/cm², thus the deterioration of the oil caused by overheating is avoided during this process.
The special vacuum tank create a large oil surface and a resulting thin film,where the oil flows track and static water evaporation area were expanded to the largest extent, so that the effect of dehydration and degassing is maximized effectively.The particular double-stage vacuum pump system and pressure-boost technical make vacuum degree in vacuum tank higher than that in common oil purifier plant. Specially-designed oil level controller in the vacuum tank assures a continuous oil flow-through in the plant, thus resulting in an optimized dehydration and degassing of the oil.
After degassing and dehydration under vacuum, the oil is conveyed by through the fine filter and out of the plant.



Item
Unit
VFD-30
VFD-50
VFD-100
VFD-150
VFD-200
VFD-300

Capacity
liters/hour
1800
3000
6000
9000
12000
18000

Heating Power
kW
24
30
60
90
120
150

Total Power
kW
29
36
69
100
132
170

Inlet Diameter
mm
25
32
40
40
50
65

Outlet Diameter
mm
25
32
40
40
50
65

Size-Length
mm
1350
1500
1900
2200
2400
2900

Size-Width
mm
1100
1200
1400
1500
1600
1800

Size-Height
mm
1700
1750
1800
1850
1900
2000

Weight
kg
600
800
1150
1500
1700
2400

Function or Construction1.Dehydration (Degas) System
2.Filtering System(particulate matter removal)
3.Oil heating System
4.Electrical Apparatus controlling System
5.Oil-level Controlling System
6.High quality components
The main component parts of NSH products such as vacuum pump,oil pump and electric apparatus are from high quality suppliers. It ensures NSH products high quality and reliability.
Emai: sinonsh30@sino-purification.com
Whatsapp:+86 15823027156

Produit Tag:

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover

Product Overview

Application

Processed Oil Specification:

Working Principle

Function or Construction

machine de filtre à huile de vide,

machine à huile purificateur,

systèmes de purification d'huile

Filtreur d'huile sous vide automatique

Machine électrique à haute tension de filtration d'huile de transformateur horizontale sur la ligne travail

Les doubles étapes nettoient à l'aspirateur la machine 600L/H d'épurateur d'huile de transformateur

Phosphate résistant au feu Ester Vacuum Oil Purifier Dehydration 3000L/H

Item	Unit	VFD-30	VFD-50	VFD-100	VFD-150	VFD-200	VFD-300
Capacity	liters/hour	1800	3000	6000	9000	12000	18000
Heating Power	kW	24	30	60	90	120	150
Total Power	kW	29	36	69	100	132	170
Inlet Diameter	mm	25	32	40	40	50	65
Outlet Diameter	mm	25	32	40	40	50	65
Size-Length	mm	1350	1500	1900	2200	2400	2900
Size-Width	mm	1100	1200	1400	1500	1600	1800
Size-Height	mm	1700	1750	1800	1850	1900	2000
Weight	kg	600	800	1150	1500	1700	2400
